    Micro ED Method development in cryo EM
    node_body | node_body

    MicroED – Three dimensional electron crystallography of protein microcrystals

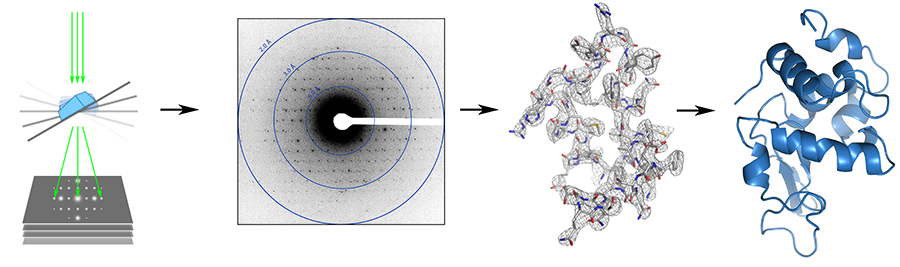

    We demonstrated that it is feasible to determine high-resolution protein structures by electron crystallography of three-dimensional crystals in an electron cryo-microscope (CryoEM). Lysozyme microcrystals were frozen on an electron microscopy grid, and electron diffraction data collected to 1.7Å resolution. We developed a data collection protocol to collect a full-tilt series in electron diffraction to atomic resolution. A single tilt series contains up to 90 individual diffraction patterns collected from a single crystal with tilt angle increment of 0.1 - 1° and a total accumulated electron dose less than 10 electrons per angstrom squared. We indexed the data from three crystals and used them for structure determination of lysozyme by molecular replacement followed by crystallographic refinement to 2.9Å resolution (Figure 9). This proof of principle paves the way for the implementation of a new technique, which we name “MicroED”, that may have wide applicability in structural biology. Current efforts include new phasing methods, automation and program development.

    An example of lysozyme MicroED data can be viewed here.

    In 2014 we further inmproved the MicroED method. Firstly, we developed an improved data collection protocol for MicroED called Continuous rotation. Microcrystals are continuously rotated during data collection yielding improved data, and allowing data processing with the crystallographic software tool MOSFLM, resulting in improved resolution for the model protein lysozyme to 2.5Å resolution. These improvements pave the way for the broad implementation and application of MicroED in structural biology. Current efforts include new phasing methods, automation and program development.
    Secondly, we used the improved MicroED protocols for data collection and analysis to determine the structure of catalase. Bovine liver catalase crystals that were only ~160nm thick were used for the structure analysis. A single crystal yielded data to 3.2Å resolution enabling structure determination rapidly.

    An example of catalase MicroED data can be viewed here.

    In 2015 we published the first two previously unknown structures determined by MicroED. The structures of two peptides from the toxic core of a-synuclein of Parkinsons’ Disease. The structures were determined from vanishingly small crystals, only ~200nm thick and wide, and yielded 1.4Å resolution. These structures, which are currently the highest resolution structures determined to date by any cryo EM method, show new and important structural information that could aid in the development of pharmaceuticals against this devastating neurological disease. The study, which was published by Nature also show a number of protons for the very first time.









    janelia7_blocks-janelia7_block_right_hand_rail | block

    Relevant papers

    1. Shi D., Nannenga B., Iadanza MG. and Gonen T* (2013). MicroED – Three dimensional electron crystallography of protein microcrystals. eLife – 2:e01345: 1 - 17.

    2. Iadanza MG. and Gonen T*. A suite of software for processing MicroED data of extremely small protein crystals. Journal of Applied Crystallography. 47: 1140 – 1145.

    3.Nannenga BL, Shi D., Leslie AGW. and Gonen T* (2014). High-resolution structure determination by continuous rotation data collection in MicroED. Nature Methods 11 (9): 927 – 930.

    4. Nannenga BL, Shi D., Hattne J., Reyes F. and Gonen T* (2014). Structure of catalase determined by MicroED. eLife 3:e03600: 1 – 11.

    5. Hattne J., Reyes FE., Nannenga BL., Shi D., de la Cruz J., Leslie AGW. And Gonen T*. MicroED data collection and processing. Acta Crystallographica section A. A71: 353 - 360 (2015).

    6. Rodriguez A.J., Ivanova M., Sawaya MR., Cascio D., Reyes F., Shi D., Sangwan S., Guenther EL., Johnson L, Zhang M., Jiang L., Arbing M., Nannega B., Hattne J., Whitelegge J., Brewster AS., Messerschmidt M., Boutet S., Sauter NK., Gonen T* and Eisenberg D* Structure of the toxic core of a-synuclein from invisible crystals. Nature - In Press (2015).



    Relevant Reviews and Book Chapters:

    1. Wisedchaisri W., Reichow S.L. and Gonen T*. (2011) Advances in structural and functional analysis of membrane proteins by electron crystallography. Structure. 19:1381-93.2. Wisedchaisri W. and Gonen T*. (2013) Phasing Electron Diffraction Data by Molecular Replacement: Strategy for Structure Determination and Refinement. Methods in Molecular Biology 955: 243 – 272.

    3. Gonen T*. (2013) The collection of high-resolution electron diffraction data. Methods in Molecular Biology 955: 153 – 169.

    4. Stokes D, Ubarretxena I, Gonen T and Engel A. (2013) High throughout methods in electron crystallography. Methods in Molecular Biology 955: 273 – 296.

    5. Nannenga B, Iadanza M, Vollmar B and Gonen T*. (2013) Electron crystallography of membrane proteins: crystallization and screening strategies using negative stain electron microscopy. Current Protocols in Protein Science – 17 (15): 1-11.

    6. Nannenga BL. and Gonen T*. Protein structure determination by MicroED. Current Opinion in Structural Biology. 27: 24 - 31 (2014).
